Russell Lothian 145
The Lothian 145 is a thinner leading-edge flat interlocking roof tile from Russell Roof Tiles, designed to emulate the appearance of small-format tiles or traditional plain tiles while offering the commercial benefits of a larger format concrete tile.
Key Features
- Design and Appearance

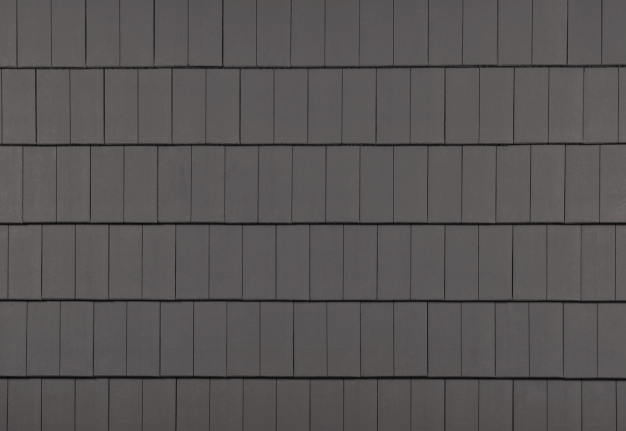

The Lothian 145 features a thin leading edge and is laid in a broken bond pattern, providing the aesthetic of smaller natural slate, stone, or clay tiles. This design offers a traditional look with the efficiency of modern materials.
- Material and Durability
Manufactured from high-quality concrete, these tiles are engineered to withstand the UK’s diverse weather conditions, ensuring long-lasting performance and minimal maintenance. The concrete composition provides strength and resilience, making it a reliable roofing solution.
- Colour Options:
Available in a range of colours, including Anthracite, Slate Grey, Cottage Red, Peat Brown, Terracotta, Burnt Orange, Autumn Stone, and Country Stone, allowing for aesthetic versatility to match different design preferences.
Technical Specifications
- Dimensions
Each tile measures 418mm in length, 330mm in width, and 16mm in thickness.
- Coverage
Approximately 12.2 tiles are required per square metre at a 145mm headlap, and 13.2 tiles per square metre at a 165mm headlap.
- Weight
Each tile weighs around 4.8 kg, contributing to a total roof weight of approximately 59 kg per square metre at a 145mm headlap.
- Minimum Roof Pitch
The minimum roof pitch is 17.5°, and the maximum is 60°, offering flexibility for various roofing designs.
Applications
The Lothian 145 tile is suitable for a variety of applications, including residential homes, commercial buildings, and extensions. Its adaptability to different roof pitches and compatibility with a range of fittings and accessories make it a practical choice for diverse roofing needs.
Benefits
- Aesthetic Appeal
The traditional slate-like appearance provides a classic look that enhances the visual appeal of any building.
- Ease of Installation
The interlocking design simplifies the installation process, reducing labour time and costs.
- Durability
Constructed from robust concrete, these tiles are built to last, providing long-term value and peace of mind.
In summary, the Lothian 145 combines traditional aesthetics with modern performance, making it an excellent choice for roofing projects throughout the UK.
